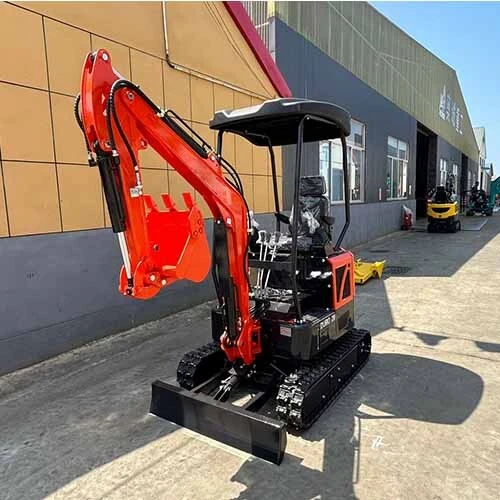

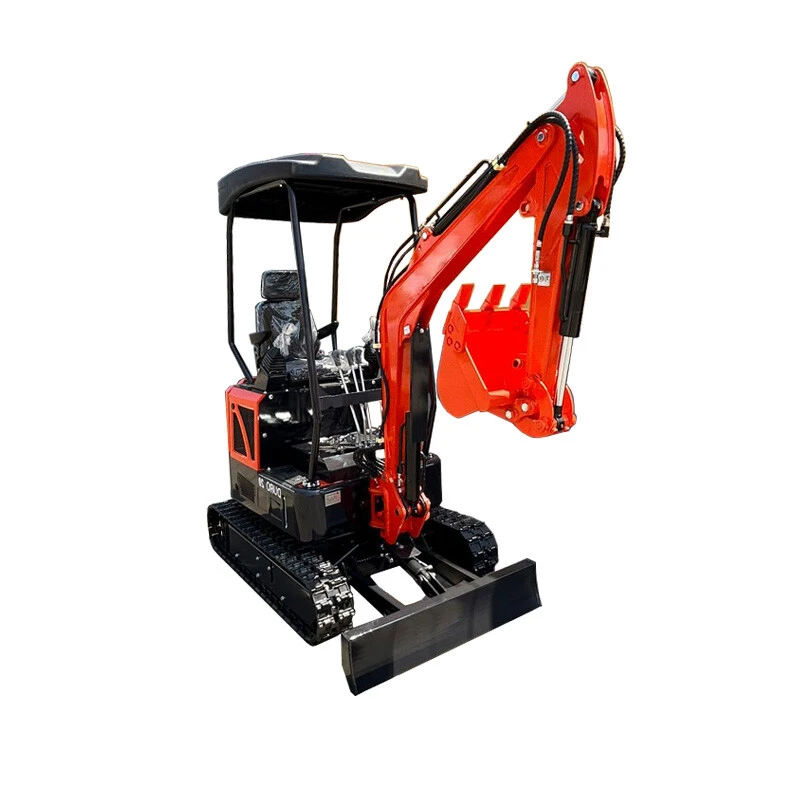

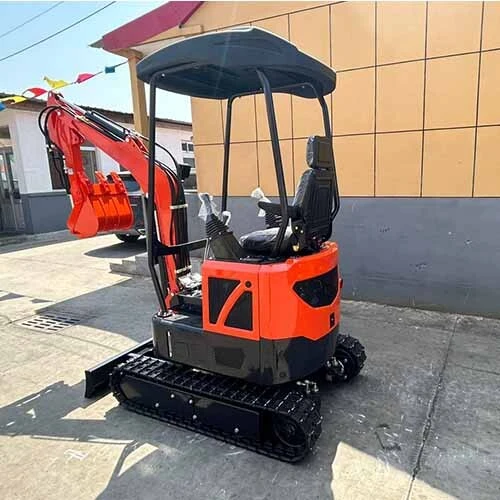

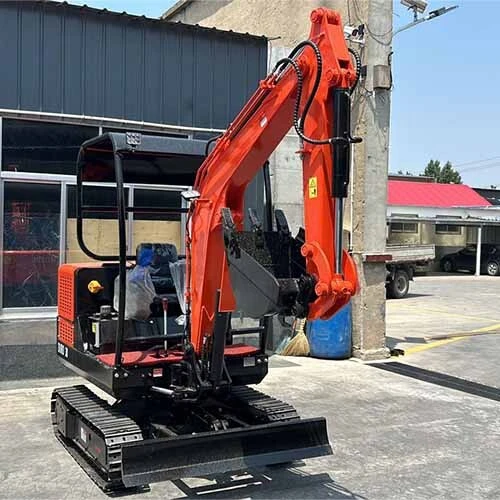

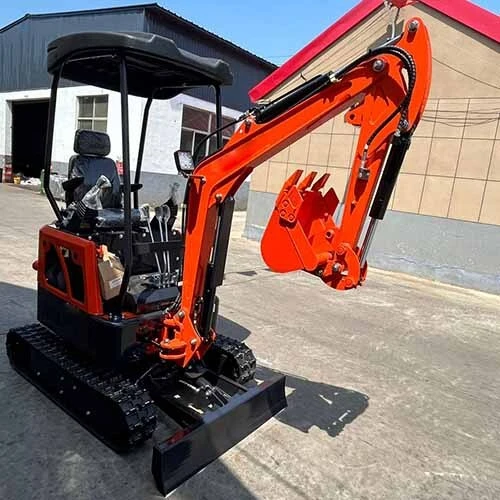

1.5Ton Excavator
With an operating weight of only 1.5ton, this mini excavator is compact, maneuverable and easy to operate in tight spaces and narrow passages.
Building C, Yuehelou Business Building, Weicheng District, Weifang City, Shandong Province

 Product Description


With an operating weight of only 1.5ton, this mini excavator is compact, maneuverable and easy to operate in tight spaces and narrow passages. The Koop diesel engine provides excellent power and fuel efficiency, ensuring maximum productivity and cost-effectiveness.

This excavator is equipped with a durable roof and optional roll cage to ensure maximum safety for operators when working outdoors. And it uses high-quality components and solid construction to ensure durability and stability.

Whether you need to dig trenches, clear debris or perform other basic tasks, our products provide top-quality equipment at an affordable price.

If you are looking for efficient and reliable products, you can contact us, our products are definitely worth considering.

1.5Ton Excavator

Engine

Laidong/Kubota

Rated Power

18.1KW

Operating Weight

1500kg

Bucket Capacity

0.03m³

Overall dimension( LxWxH)

2550x1100x2200mm

Chassis Width

1100mm

Track Shoe Width

180mm

Track Shoe Length

1300mm

Radius Of The End Of The Platform

933mm

Track Shoe Gauge

1100mm

Ground Pressure

38kpa

Max. Digging Height

2740mm

Max. Dumping Height

1750mm

Max. Digging Depth

1800mm

Max. Digging Radius

2400mm

Min. Radius Of Gyration

1190mm

Max. Rotation Speed Of The Pump

2500r/min

Bucket Width

450mm

Climbing Angle

35°

Turning Angle

3600°

Max. Bucket Digging Force

14KN

Max. Arm Digging Force

10KN

Rotation Speed

10-12rpm

Travel Speed

2.2km/h
